Replacing App Center with GitHub Actions

By John Fisher & Arnav Mundkur on 21 februari 2025

Why GHA?

This seems like a lot of work... Why not go with an off-the-shelf solution from something like Bitrise or Codemagic? Fair question but not the main point of this post. To look into our reasoning check out the Benefits section!

Some notes before we get started

  1. We use this workflow to build two apps, one of which can be white-labeled, so we have additional app and white-label-release inputs which makes things a bit trickier. You might not need that so feel free to trim stuff down and make it your own! But for us, we why we have the env-variable-prep-android.sh which normalizes the variable names used for secrets so those secrets and build file names, etc. can be easily used. If you just have a single app you probably don't need this script.
  2. The code below is only for the build process. Though the Architecture Decision Record (ADR) considered how this would affect future decisions about artifact upload automation and rolling out releases for internal testing, nothing about that is automated here.
  3. There's a lot of code here. We removed version numbers to make sure we're not giving out too much information. If you see something like @vx.x.x, you'll have to fill those in with the versions that are needed for your app/pipeline.

Implementation

Part 1 - Basic Setup

Add the files below. Nothing in this setup should effect App Center but it is good to check in your changes to a branch and test those against the regular App Center build flow. The main point of the steps in this section is to just get a basic action, with inputs, set up and running. Full implementation is further down. The env-variable-prep-android.sh and env-variable-prep-ios.sh files created variables based off the input parameters passed in so they can be used in a reusable and consistent manner later on. The env-file-prep.sh file is responsible for creating a .env file with values from whichever environment you're using. Though it's nice to add the Fastlane and Gymfile files, those won't be used until Step 4 when the rest of the pipeline is fleshed out.

Android

file: .github/workflows/mobile-apps-build-android.yaml

--- name: Mobile App Build for Android run-name: "Build: Android, ${{ inputs.app }}, ${{ inputs.environment }}, white-label-release=${{ inputs.white-label-release }}" on: workflow_dispatch: inputs: app: description: 'App' required: true type: choice options: - my-first-app - my-second-app environment: description: 'Environment' required: true type: choice options: - test - acceptance - production white-label-release: description: 'White-labeled Release?' type: boolean default: false jobs: build: name: Build app for android runs-on: ubuntu-latest environment: ${{ inputs.environment }} steps: - name: Checkout ${{ github.repository }} uses: actions/checkout@vx.x.x - name: Echo Input env: APP: ${{ inputs.app }} WHITE_LABEL_RELEASE: ${{ inputs.white-label-release }} ENVIRONMENT: ${{ inputs.environment }} run: | echo "APP=$APP" echo "WHITE_LABEL_RELEASE=$WHITE_LABEL_RELEASE" echo "ENVIRONMENT=$ENVIRONMENT"

file: env-variable-prep-android.sh

#!/bin/bash ARTIFACT_NAME="mobile-my-first-app-${ENVIRONMENT}-release" FASTLANE_ANDROID_FLAVOR="${ENVIRONMENT}" { echo "artifact-name=${ARTIFACT_NAME}" echo "fastlane-android-flavor=${FASTLANE_ANDROID_FLAVOR}" } | tee -a "$GITHUB_OUTPUT" # Secrets should not get sent out over tee command (which also prints it to console) { echo "android-key-alias=my-first-app" echo "android-keystore-file=../keystores/my-first-app.jks" echo "android-keystore-pass=${ANDROID_KEY_PASSWORD}" echo "android-store-pass=${ANDROID_STORE_PASSWORD}" } >> "$GITHUB_OUTPUT"

file: ./fastlane/Fastfile

opt_out_usage platform :android do desc 'Build app for Android' lane :build do build_android_app( task: 'bundle', flavor: ENV['FASTLANE_ANDROID_FLAVOR'], build_type: 'Release', project_dir: 'android/', print_command: true, print_command_output: true, ) end end
iOS

file: .github/workflows/mobile-apps-build-ios.yaml

--- name: Mobile App Build for iOS run-name: "Build: iOS, ${{ inputs.app }}, ${{ inputs.environment }}, white-label-release=${{ inputs.white-label-release }}" on: workflow_dispatch: inputs: app: description: 'App' required: true type: choice options: - my-first-app - my-second-app environment: description: 'Environment' required: true type: choice options: - test - acceptance - production white-label-release: description: 'White-labeled Release?' type: boolean default: false jobs: build: name: Build app for iOS runs-on: macos-latest environment: ${{ inputs.environment }} steps: - name: Checkout ${{ github.repository }} uses: actions/checkout@vx.x.x - name: Echo Input env: APP: ${{ inputs.app }} WHITE_LABEL_RELEASE: ${{ inputs.white-label-release }} ENVIRONMENT: ${{ inputs.environment }} run: | echo "APP=$APP" echo "WHITE_LABEL_RELEASE=$WHITE_LABEL_RELEASE" echo "ENVIRONMENT=$ENVIRONMENT"

file: env-variable-prep-ios.sh

#!/bin/bash # Secrets should not get sent out over tee command (which also prints it to console) { echo "ios-mobile-provisioning-profile=${IOS_MOBILE_PROVISIONING_PROFILE}" } >> "$GITHUB_OUTPUT"

file: ./fastlane/Gymfile

scheme(ENV['SCHEME']) workspace("ios/my-first-app.xcworkspace") export_options("ios/exportOptions.plist") output_directory("ios/build") output_name(ENV['SCHEME'])
Both Android & iOS

file: env-file-prep.sh

#!/usr/bin/env bash ##################################################### # Creates an .env file for use in react-native-config # This script should be run from the /mobile folder ##################################################### if [ "${ENVIRONMENT}" != "test" ] && [ "${ENVIRONMENT}" != "acceptance" ] && [ "${ENVIRONMENT}" != "production" ]; then echo "ENVIRONMENT is not set, using 'production' as default." ENVIRONMENT=production fi echo "Copying 'my-first-app/.env.${ENVIRONMENT}' to 'my-first-app/.env'..." cp "my-first-app/.env.${ENVIRONMENT}" "my-first-app/.env" echo "Success!"

Part 2 - Testing your Workflow Locally

WARNING: GitHub Actions doesn't let you run a workflow_dispatch action until it has been merged into the main branch so you'll want to get the basic setup above in place before you start tinkering with application logic or things that could effect App Center. Also note that while act is helpful for getting the basics in place, it's unlikely you'll be able to test the complete process locally because, at least for us a) Android pipeline crashes halfway through the Build App step with an error of Gradle build daemon disappeared unexpectedly (it may have been killed or may have crashed), and b) iOS tries to install a fresh copy of Xcode

  1. Follow installation instructions on their User Guide

  2. Create a ~/.actrc file that looks like this



   --container-architecture linux/amd64
   --secret GITHUB_TOKEN=$GITHUB_TOKEN

  3. Get your $GITHUB_TOKEN env variable in place

    1. Install gh, the GitHub cli

    2. Modify shells (zsh shown below)



   export GITHUB_TOKEN="$(gh auth token)"

    3. Close and re-open your terminal. Test to make sure you can see your GITHUB_TOKEN envrionment variable

  4. Set up a temporary local file for secrets. WARNING: Once you’re done, remember to delete the file so it’s not hanging around on your system!! (or just don’t create it in the first place unless you really need it)

    file: .secrets



 ANDROID_STORE_PASSWORD="someSecr3ts"
 ANDROID_KEY_PASSWORD="YouWantQuotesBecause*s_etc.WillScrewYouUp"
 MAPBOX_READ_TOKEN=shhhhh.Its.asecret

  5. Set up a temporary local file for your workflow trigger inputs.

    file: app-input.json



 {
   "action": "workflow_dispatch",
   "inputs": {
     "app": "my-first-app",
     "environment": "test",
     "white-label-release": false
   }
 }

  6. Run your workflow like this. As far as I know, you can only run the iOS workflow locally if you're on a mac. To do that you'll need to provide an additional parameter: -P macos-latest=-self-hosted

Android

act \ --workflows .github/workflows/mobile-apps-build-android.yaml \ --eventpath="${HOME}/Documents/IT/GitHub Actions/Mobile Apps/app-input.json" \ --secret-file="${HOME}/Documents/IT/GitHub Actions/Mobile Apps/.secrets"

iOS

act -P macos-latest=-self-hosted \ --workflows .github/workflows/mobile-apps-build-ios.yaml \ --eventpath="${HOME}/Documents/IT/GitHub Actions/Mobile Apps/app-input.json" \ --secret-file="${HOME}/Documents/IT/GitHub Actions/Mobile Apps/.secrets"

Part 3 - Testing Things out from GHA

  1. Once you're happy with your changes locally, send a PR & merge them in! Remember this is only the basic setup to get the action avaible from the GitHub Actions interface so maybe leave a comment in the PR notifying your teammates about how they should expect a follow-up PR

  2. Go to the "Actions" tab at the top of your GitHub repo. You should now see your actions for building iOS and Android on the left. Since it's a workflow_dispatch action you'll trigger the actions manually.

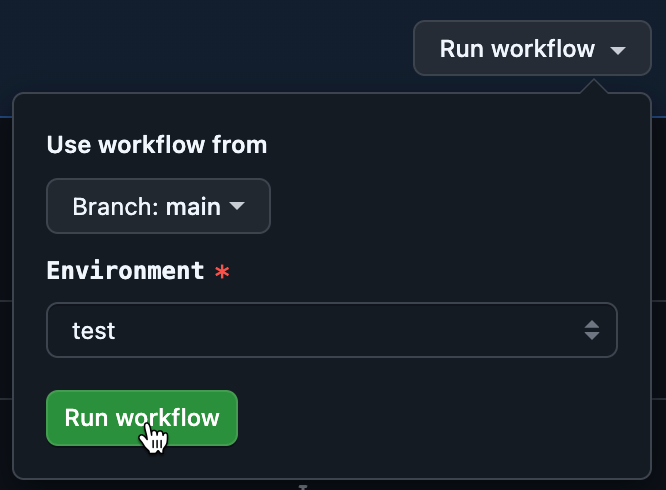

    run-workflow

Part 4 - Implement the Full Workflow for iOS and Android

Adjust the files below. This is where you may end up needing to modify things that affect your App Center build. Try to keep them to a mimimum so you can still use App Center for builds should anything not work as expected. Fastlane is a tool that helps with automating build and release processes for mobile apps. You can think of it as a toolbox of easy-to-use wrapper functions around gradle for Android, and xcodebuild for iOS.

Android

file: .github/workflows/mobile-apps-build-android.yaml

--- name: Mobile App Build for Android run-name: "Build: android, ${{ inputs.app }}, ${{ inputs.environment }}, white-label-release=${{ inputs.white-label-release }}" on: workflow_dispatch: inputs: app: description: 'App' required: true type: choice options: - my-first-app - my-second-app environment: description: 'Environment' required: true type: choice options: - test - acceptance - production white-label-release: description: 'White-labeled Release?' type: boolean default: false jobs: build: name: Build app for android runs-on: ubuntu-latest environment: ${{ inputs.environment }} steps: - name: Checkout ${{ github.repository }} uses: actions/checkout@vx.x.x - name: Prep Env Variables id: prep-env-variables working-directory: mobile env: APP: ${{ inputs.app }} # my-first-app | my-second-app ENVIRONMENT: ${{ inputs.environment }} # production | test | acceptance BRAND: ${{ inputs.white-label-release && 'other-company' || 'my-company' }} APP_1_ANDROID_KEY_PASSWORD_VANDEBRON: ${{ secrets.APP_1_ANDROID_KEY_PASSWORD_VANDEBRON }} APP_1_ANDROID_STORE_PASSWORD_VANDEBRON: ${{ secrets.APP_1_ANDROID_STORE_PASSWORD_VANDEBRON }} APP_1_ANDROID_KEY_PASSWORD_WHITE_LABEL: ${{ secrets.APP_1_ANDROID_KEY_PASSWORD_WHITE_LABEL }} APP_1_ANDROID_STORE_PASSWORD_WHITE_LABEL: ${{ secrets.APP_1_ANDROID_STORE_PASSWORD_WHITE_LABEL }} APP_2_ANDROID_KEY_PASSWORD_VANDEBRON: ${{ secrets.APP_2_ANDROID_KEY_PASSWORD_VANDEBRON }} APP_2_ANDROID_STORE_PASSWORD_VANDEBRON: ${{ secrets.APP_2_ANDROID_STORE_PASSWORD_VANDEBRON }} run: bash ./env-variable-prep-android.sh - name: Create .env file working-directory: mobile env: APP: ${{ inputs.app }} BRAND: ${{ steps.prep-env-variables.outputs.inferred-brand }} ENVIRONMENT: ${{inputs.environment}} run: bash ./env-file-prep.sh - name: Enable Corepack run: corepack enable - name: Setup NodeJS id: setup-node uses: actions/setup-node@vx.x.x with: node-version: 18.x registry-url: https://registry.npmjs.org cache: 'yarn' cache-dependency-path: mobile/${{ inputs.app }}/yarn.lock - name: Setup Java uses: actions/setup-java@vx.x.x with: distribution: 'temurin' java-version: '20' cache: 'gradle' - name: Setup Android SDK # sadly no caching capabilities here uses: android-actions/setup-android@vx.x.x with: log-accepted-android-sdk-licenses: false packages: 'tools' # Default is 'tools platform-tools but we don't need platform-tools for packaging' - name: Set up ruby env # Fastlane is a "Ruby gem" uses: ruby/setup-ruby@vx with: ruby-version: '3.3.0' # Changing this to 3.3 will give you "Your Ruby version is 3.3.5, but your Gemfile specified 3.3.0" bundler-cache: true - name: Install Gem Bundler working-directory: mobile/${{ inputs.app }} run: | gem install bundler bundle install --quiet # Install Dependencies - name: Yarn Install working-directory: mobile/${{ inputs.app }} run: yarn install --immutable # Build - name: Build App run: bundle exec fastlane android build working-directory: mobile/${{ inputs.app }} env: ENVIRONMENT: ${{ inputs.environment }} FASTLANE_ENV_INFERRED_BRAND: ${{ steps.prep-env-variables.outputs.inferred-brand }} ANDROID_KEYSTORE_FILE: ${{ steps.prep-env-variables.outputs.android-keystore-file }} ANDROID_KEY_ALIAS: ${{ steps.prep-env-variables.outputs.android-key-alias }} ANDROID_STORE_PASSWORD: ${{ steps.prep-env-variables.outputs.android-store-pass }} ANDROID_KEY_PASSWORD: ${{ steps.prep-env-variables.outputs.android-keystore-pass }} FASTLANE_ANDROID_FLAVOR: ${{ steps.prep-env-variables.outputs.fastlane-android-flavor }} # Upload - name: Upload application uses: actions/upload-artifact@vx with: name: ${{steps.prep-env-variables.outputs.artifact-name}} path: "mobile/${{ inputs.app }}/android/app/build/outputs/bundle/${{ steps.prep-env-variables.outputs.fastlane-android-flavor }}Release/app-${{ steps.prep-env-variables.outputs.fastlane-android-flavor }}-release.aab" retention-days: 30
iOS

file: .github/workflows/mobile-apps-build-ios.yaml

--- name: Mobile App Build for iOS run-name: "Build: iOS, ${{ inputs.app }}, ${{ inputs.environment }}, white-label-release=${{ inputs.white-label-release }}" on: workflow_dispatch: inputs: app: description: 'App' required: true type: choice options: - my-first-app - my-second-app environment: description: 'Environment' required: true type: choice options: - test - acceptance - production white-label-release: description: 'White-labeled Release?' type: boolean default: false jobs: build: name: Build app for iOS runs-on: macos-latest environment: ${{ inputs.environment }} steps: - name: Checkout ${{ github.repository }} uses: actions/checkout@vx.x.x - name: Prep Env Variables id: prep-env-variables working-directory: mobile env: APP: ${{ inputs.app }} # my-first-app | my-second-app BRAND: ${{ inputs.white-label-release && 'other-company' || 'my-company' }} ENVIRONMENT: ${{ inputs.environment }} # production | test | acceptance APP_1_MY_COMPANY_IOS_MOBILE_PROVISIONING_PROFILE: ${{ secrets.APP_1_MY_COMPANY_IOS_MOBILE_PROVISIONING_PROFILE }} APP_1_OTHER_COMPANY_IOS_MOBILE_PROVISIONING_PROFILE: ${{ secrets.APP_1_OTHER_COMPANY_IOS_MOBILE_PROVISIONING_PROFILE }} IOS_BUILD_CERTIFICATE_P12_OTHER_COMPANY: ${{ secrets.IOS_BUILD_CERTIFICATE_P12_OTHER_COMPANY }} IOS_BUILD_CERTIFICATE_P12_PASSWORD_OTHER_COMPANY: ${{ secrets.IOS_BUILD_CERTIFICATE_P12_PASSWORD_OTHER_COMPANY }} APP_2_IOS_MOBILE_PROVISIONING_PROFILE: ${{ secrets.APP_2_IOS_MOBILE_PROVISIONING_PROFILE }} run: bash ./env-variable-prep-ios.sh - name: Create .env file working-directory: mobile env: APP: ${{ inputs.app }} # my-first-app | my-second-app BRAND: ${{ steps.prep-env-variables.outputs.inferred-brand }} ENVIRONMENT: ${{inputs.environment}} run: bash ./env-file-prep.sh - name: Import Build Certificate from Secrets uses: apple-actions/import-codesign-certs@vx with: p12-file-base64: ${{ steps.prep-env-variables.outputs.ios-build-certificate-p12 }} p12-password: ${{ steps.prep-env-variables.outputs.ios-build-certificate-p12-password }} - name: Import Mobile Provisioning Profile uses: nickwph/apple-provisioning-profile-action@vx.x.x with: profile-base64: ${{ steps.prep-env-variables.outputs.ios-mobile-provisioning-profile }} - name: Setup NodeJS id: setup-node uses: actions/setup-node@vx.x.x with: node-version: 20.x # Mapbox v10 ships with bitcode on XCode 16 which is not allowed by the App Store # https://github.com/mapbox/mapbox-maps-ios/issues/2233 # Once this issue is fixed we can upgrade to 16 - name: Install XCode uses: maxim-lobanov/setup-xcode@vx.x.x with: xcode-version: 15.4 - name: Install Ruby uses: ruby/setup-ruby@vx.x.x with: ruby-version: 3.3.0 - name: Install Bundler run: gem install bundler # TODO: Cache node_modules similarly to how Pods are cached (compare hash of yarn.lock) - name: Yarn Install working-directory: mobile/${{ inputs.app }} run: yarn install --immutable # TODO: Cache Gems similarly to how Pods are cached (compare hash of Gemfile.lock) - name: Install Gems run: bundle install working-directory: mobile/${{ inputs.app }} - name: Cache CocoaPods dependencies uses: actions/cache@vx env: FILES_GLOB: mobile/${{ inputs.app }}/ios/Podfile.lock with: path: | mobile/${{ inputs.app }}/ios/Pods key: ${{ runner.os }}-pods-${{ hashFiles(env.FILES_GLOB) }} restore-keys: | ${{ runner.os }}-pods- - name: Install Pods working-directory: mobile/${{ inputs.app }}/ios run: bundle exec pod install - name: Build iOS App env: APP: ${{ inputs.app }} SCHEME: ${{ steps.prep-env-variables.outputs.ios-scheme }} # otherCompanyFirstAppProduction, myCompanySecondAppTest BRAND: ${{ steps.prep-env-variables.outputs.inferred-brand }} TARGET: ${{ steps.prep-env-variables.outputs.ios-target }} run: bundle exec fastlane gym working-directory: mobile/${{ inputs.app }} # Upload - name: Upload application uses: actions/upload-artifact@vx with: name: ${{steps.prep-env-variables.outputs.ios-scheme}} path: "mobile/${{ inputs.app }}/ios/build/${{ steps.prep-env-variables.outputs.ios-scheme }}.ipa" retention-days: 30 overwrite: true if-no-files-found: error

Part 5 - Troubleshooting

More than likely these won't work the first time. Time to go back and adjust. Note that since the workflow is now in the main branch you can test your workflow changes on a feature branch. Just select your feature branch in the "Branch" dropdown shown above.

Other Things to Note

  1. App Center gives you the ability to write `appcenter-pre-build.sh` and `appcenter-post-build.sh` scripts. The `env-file-prep.sh` is basically that same thing, just without the context of appcenter.
  2. One of our apps is using MapBox which needs a `.netrc` in the root directory. If you need something similar, you can add a step to your action by adding the code shown in the the "optional mapbox" part + the `./my-first-app/prep-mapbox.sh` in the Appendix section below.
  3. After our work on this was done (and only as I'm writing this article) we realized we can use the `sparse-checkout` option from `actions/checkout` to only check out the needed files. This should speed up our workflow runtime even more!
  4. It may be helpful for you to add the build and/or version number onto the artifact. We haven't done that but it's something we're interested in adding for the future.
  5. Troubleshooting certificates for iOS was a HUGE pain in the butt. I don't have any good advice here other than to realize (and communicate with your POs) that this part may take a while.

Benefits

  1. It regularly took over 50 minutes for our mobile app to build in App Center. Part of that could have very likely be improved by adjusting App Center configurations & how we store and bundle app assets but after migrating our builds to GitHub Actions our app build times are now down to 22 minutes - More than twice as fast!
  2. All the rest of the software at Vandebron (backend services in Scala and Python and frontend applications in Typescript + React) is built using GitHub Actions. This move brings mobile apps in line with all other software. This move to GHA for mobile builds has led to several of our mobile devs getting our hands dirty in GHA, which is great because we can now play a role in the larger CICD discussions.
  3. We have full control over our CICD pipeline for mobile builds. In the future we can integrate more Fastlane commands to further automate the release process.
  4. We did a full ADR (shown below) which initiated the work here. Links referenced in image are in Appendix below. replace-app-center-adr

Appendix

Mapbox Integration

file: .github/workflows/mobile-apps-build-android.yaml and .github/workflows/mobile-apps-build-ios.yaml (optional mapbox)



  - name: Create Mapbox .netrc file (my-first-app only)
    if: ${{ inputs.app == 'my-first-app' }}
    working-directory: mobile
    env:
      MAPBOX_READ_TOKEN: ${{ secrets.MAPBOX_READ_TOKEN }}
    run: bash ./my-first-app/prep-mapbox.sh

file: ./my-first-app/prep-mapbox.sh



  #!/usr/bin/env bash

  # WARN: DO NOT use tee here (it prints to console)
  {
    echo "machine api.mapbox.com"
    echo "login mapbox"
    echo "password ${MAPBOX_READ_TOKEN}"
  } >> ~/.netrc
  chmod 0600 ~/.netrc

ADR Links

  1. GHA (Billing)
  2. Bitrise
  3. CodeMagic
  4. YouTube video showing GHA setup for Android
  5. Medium article showing GHA setup for Android
  6. Article discussing how build uploads can be done
